Catalog no. PAT0050

The PATfix mRNA analytical platform enables reliable at-line insight during process development and production of mRNA, with emphasis on IVT reaction components (nucleotides and capping reagents) and final product quality control.

PATfix mRNA Platform Includes:

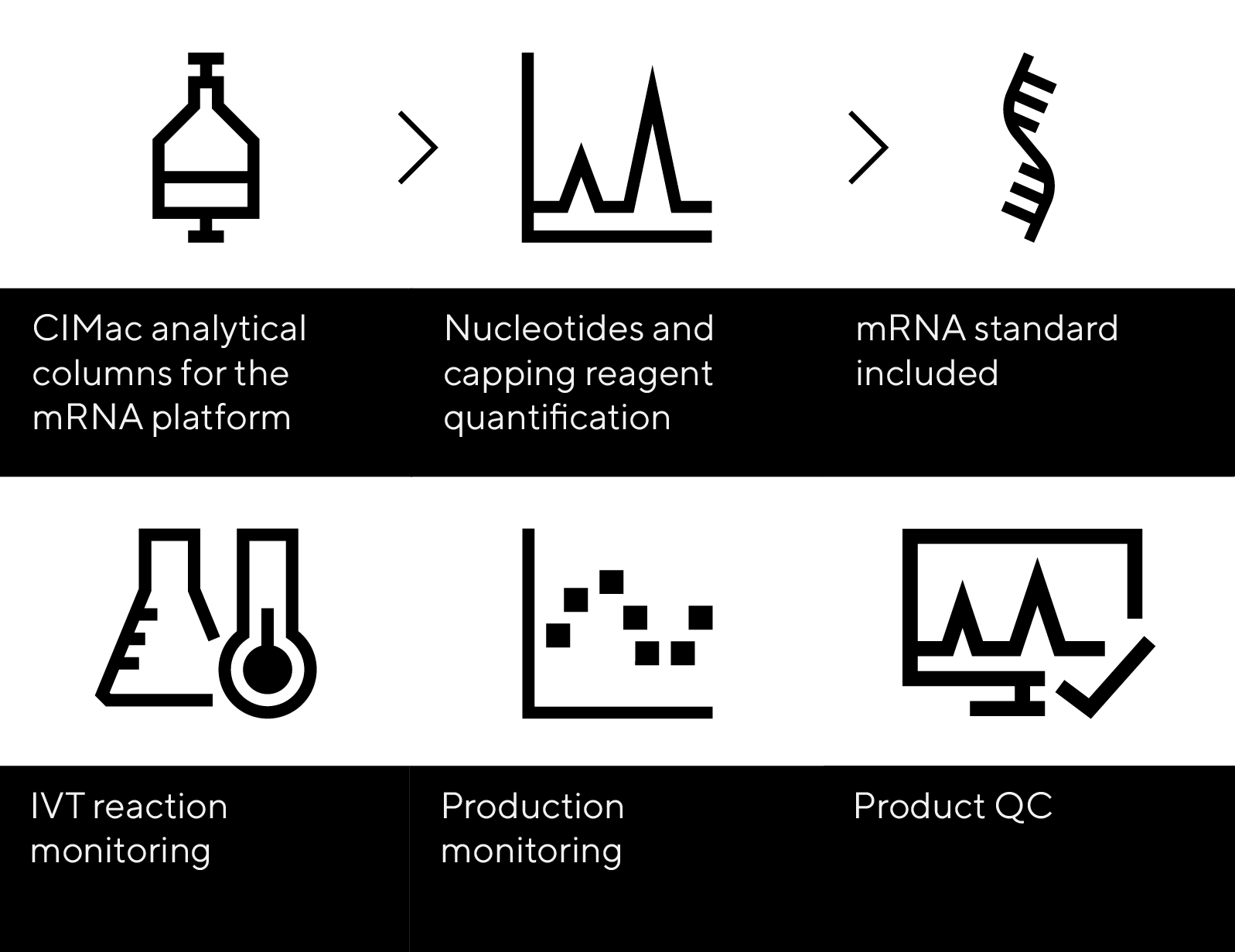

  • Three distinct analytical approaches:

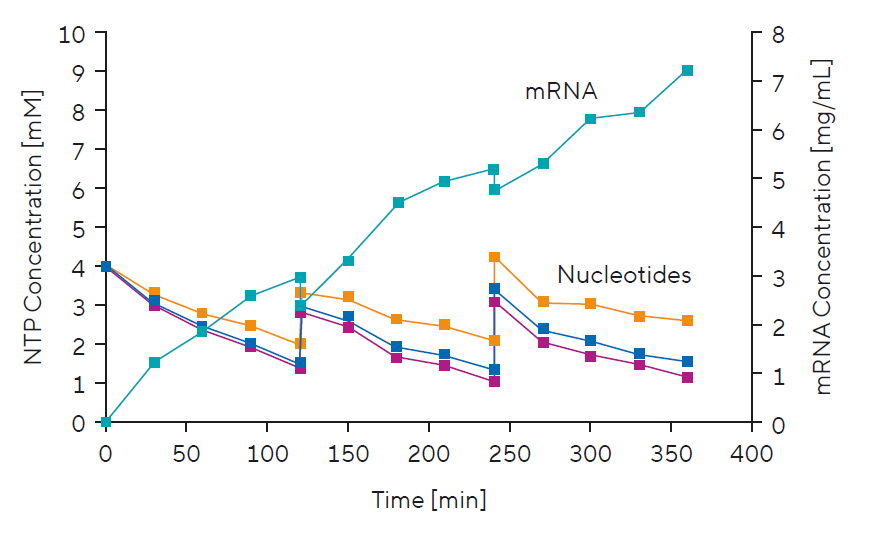

    • Robust validated methods for at-line IVT reaction monitoring
    • Fast and reliable validated methods for mRNA quantification

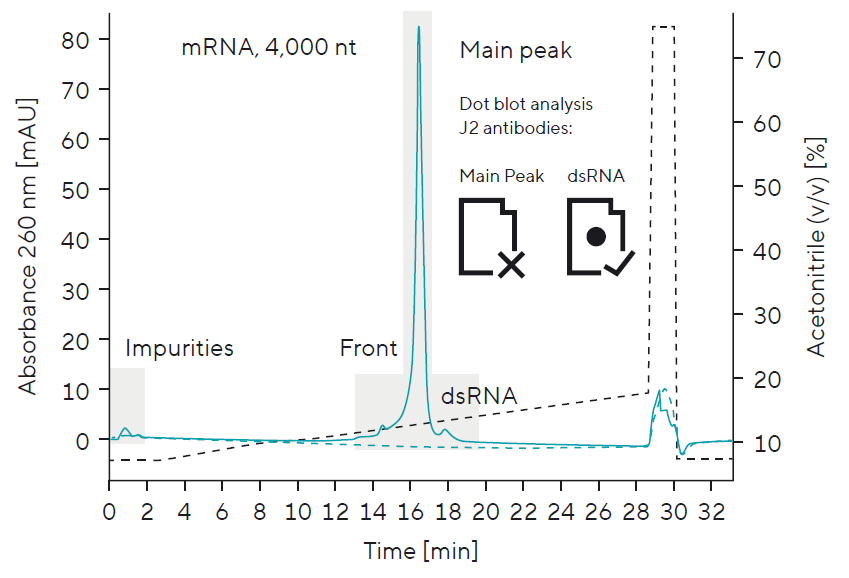

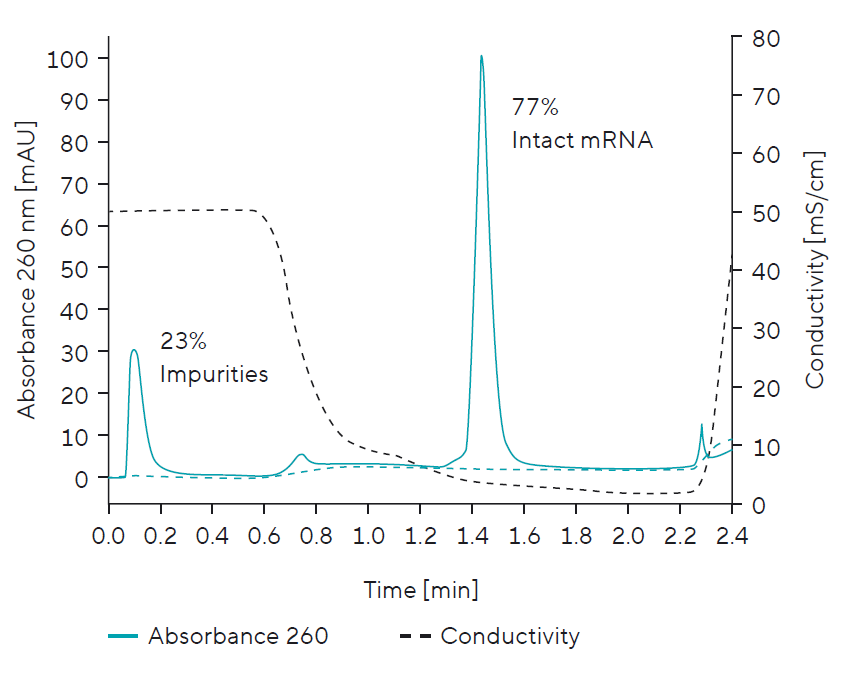

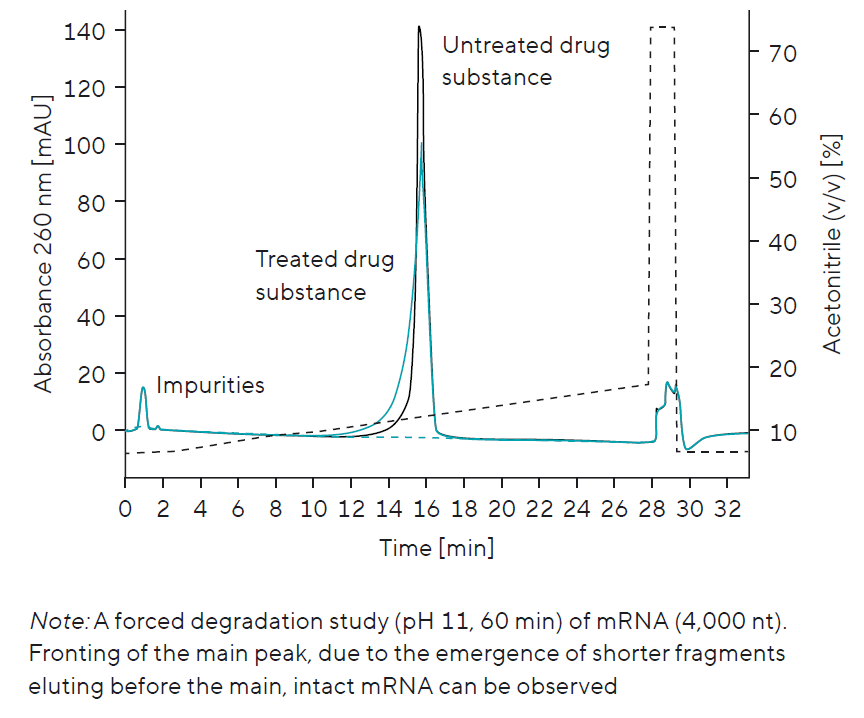

    • Quality control for mRNA size, integrity, and detection of dsRNA

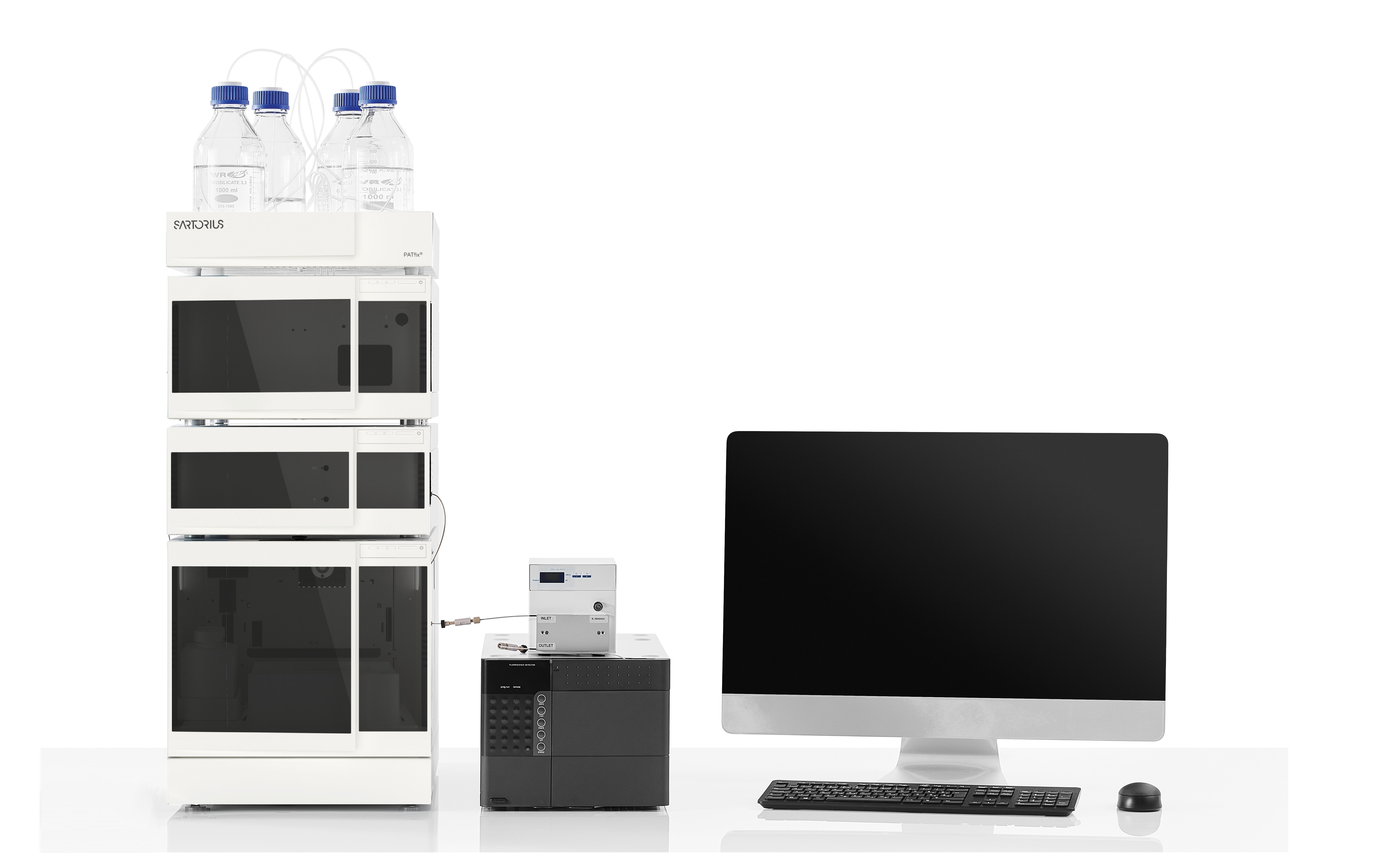

  • PATfix Model LPG
  • PATfix software, including mRNA platform
  • mRNA standard for 30 x calibrations
  • 5 free CIMac columns for mRNA platform

Additional Benefits

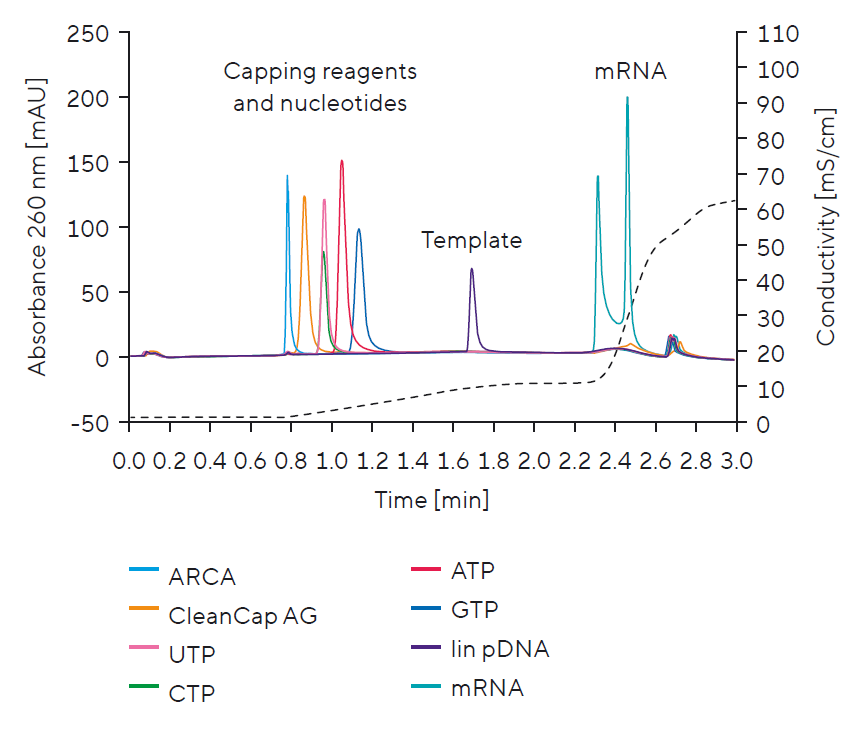

  • Quantification of nucleotides and capping reagents
  • Customized method development and validation of your sample
  • Server-client based approach – access your data securely from anywhere (office, home)
  • Easily share interactive results with colleagues, customers and/or regulators
  • Report generation helps ease the paperwork load
  • Part 11 compliance allows easy implementation of PATfix analytics in FDA approval process
  • Sensitive detector suite for low sample consumption

Try out the PATfix software demo, follow the link below.

Software Demo
